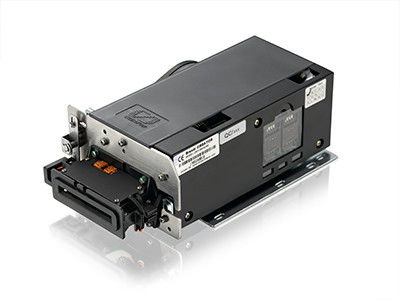

CRT-350-N WOSA Compact Structure Motorized Card Reader 250mA

Basic Information
Place of Origin: CHINA
Brand Name: CREATOR
Certification: EMV & PBOC
Model Number: CRT-350-N
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Payment Terms: 100% full TT advanced payment
Detail Information
Width: 53.92~54.18mm Length: 85.47~85.90mm
Thickness: 0.76±0.08mm Power Supply: DC24V±10%
Name: Motorized Card Reader Approval: EMV & PBOC
High Light:

WOSA Motorized Card Reader

,

Compact Structure Motorized Card Reader

,

250mA IC RFID Card Reader


Product Description

CRT-350-N is a general purpose smart card reader with integrated 3-in-1 card reader module for contact/contactless cards, magnetic stripe cards or hybrid cards.This reader is palm size small and compact with abundant features.



Motorized card reader,smart card reader CRT-350-N product feature
High-end ATM-oriented motor-driven card reader for magnetic card,contact IC card
Support open method by magnetic card detected,IC card pre-detected or switch
Front/rear card-in card-out,jittery card-in control
WOSA complied
Optional anti-skimming,anti-fishing function by electromagnetic wave interference
Encryption
Support DES,3DES,AES & Chinese commercial encryption algorithm
EMV & PBOC certified




Motorized card reader,smart card reader CRT-350-N product specification

Card type Magnetic card ISO7810,ISO7811
Loco 300oe,Support writing Loco 300oe
Writing Hico optional
IC card ISO7816-1,2,3
Support T=0,T=1 CPU card
Support T=0,T=1 PSAM card
Support R/W RFID card (optional)
Card dimension Width:53.92~54.18mm
Length:85.47~85.90mm
Thickness:0.76±0.08mm
Power supply DC24V±10%
Operation current ( without solenoid current ) Idle <250mA
Peak < 3000mA

Motorized card reader CRT-350-N product Application
ATM/CRS
Self-service terminal
Security terminal

Self-service recharging payment machine



Why choose us ?

1. Professional ATM system integrator with 20 years of experience
2. Perfect accessories inventory, providing frontline staff with absolute security
3. Strict QC, each product is masterpiece in accordance with strict standards
4. Perfect after-sales service system; quickly provide customers with high quality solutions
