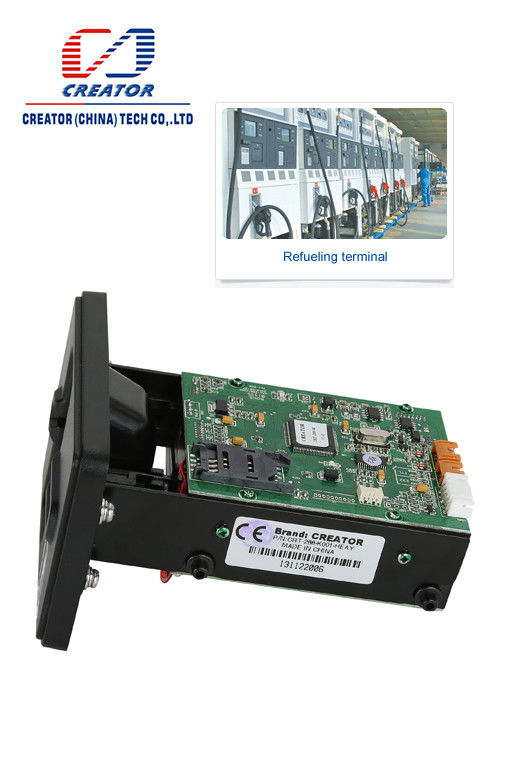

Magnetic RF Dip Card Reader EMV Hybrid Smart Card Reader With Card Latch

Card type

IC Card:

ISO7816-2

T=0,T=1  CPU Card
T=0,T=1  PSAM Card ( 1 SAM slot )
RF Card:  ISO  14443  TYPE  A&B card

Card dimension

Width: 53.92~54.18mm, Length: 85.47~85.90mm
Thickness: 0.76~1mm

Lifetime

Micro switch: 500,000 times Min

IC contact: 300,000 times Min

Interface

RS-232&USB

Power voltage

DC 5V±10%

Power consumption

Static: 50mA
Peak: 200mA

Environment

Operation: 0℃~50℃,0~90% RH (Non condensing)
Storage: -25℃~80℃,0~95% RH (Non condensing)

Weight

About 200g
