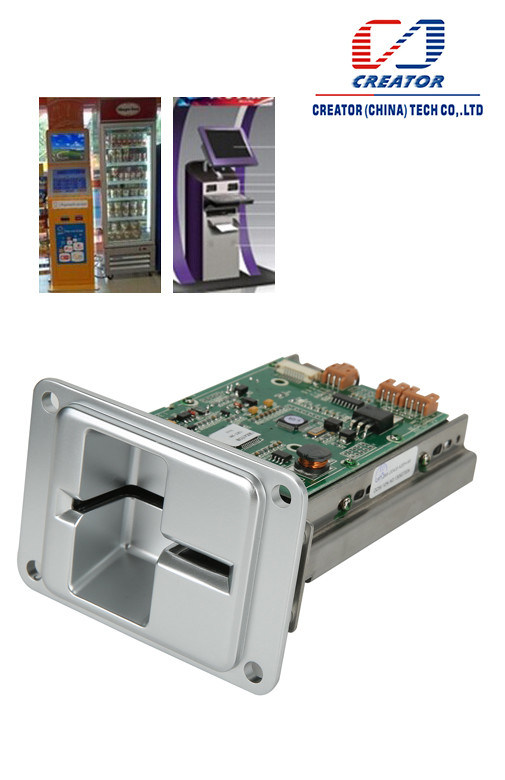

Kiosk Smart Manual Insert Hybrid Card Reader RS232 Dip Insert Card Reader
  • Kiosk Smart Manual Insert Hybrid Card Reader RS232 Dip Insert Card Reader

Kiosk Smart Manual Insert Hybrid Card Reader RS232 Dip Insert Card Reader

Place of Origin Shenzhen, China
Brand Name Creator
Certification EMV, CE
Model Number CRT-288
Product Details
Application:
Kiosk
Card Type:
IC|RF
Certification:
EMV
Feature:
Smart
Interface:
RS232
Power Supply:
DC 5V
High Light:

Kiosk Smart Hybrid Card Reader

,

Manual Insert Hybrid Card Reader

,

RS232 Dip Insert Card Reader

Product Description

Manual Insert Dip Card Reader



Description:



• IC&RF card read &write
• Automatically lock the card,manual/auto card ejection
• Special design for protecting reader from foreign object
• Multiple bezel options

• PSAM board option

• EMV certified

• Special baffle design for protecting reader from foreign object





Applications:



Fuel dispensing, gaming, government, parking system, transportation AFC, utility





Specifications:



Card type

IC Card:

Support ISO7816-2
Support  T=0,T=1  CPU Card
Support  T=0,T=1  SAM Card ( need to use PSAM board )
RF Card:support ISO14443 TYPE A&B card

Card dimension

Width:53.92~54.18mm,Length:85.47~85.90mm
Thickness:0.76~1mm(Factory standard 0.76mm)

Power supply

DC5V±5%

Communication interface

RS-232

Lifetime

IC card contact: 300,000 times min
Lock mechanism: 500,000 times min

Micro switch: 500,000 times min

M.T.B.F

>100,000 hours (Electronic components only)

Environmental conditions

Operation:0℃~50℃/0 ~ 90% RH (Non condensing)
Storage:-25℃~80℃/0 ~ 95% RH (Non condensing)

Weight

About 240g
