CRT-603-9001 E Passport Reader ID Card Reader Information Recognition

Basic Information
Place of Origin: CHINA
Brand Name: CREATOR
Certification: ICAO DOC 9303
Model Number: CRT-9001
Minimum Order Quantity: 1 pcs
Price: Negotiation
Detail Information
High Light:

Information Recognition E passport reader

,

ICAO DOC 9303 E passport reader

,

E passport ID card reader


Product Description

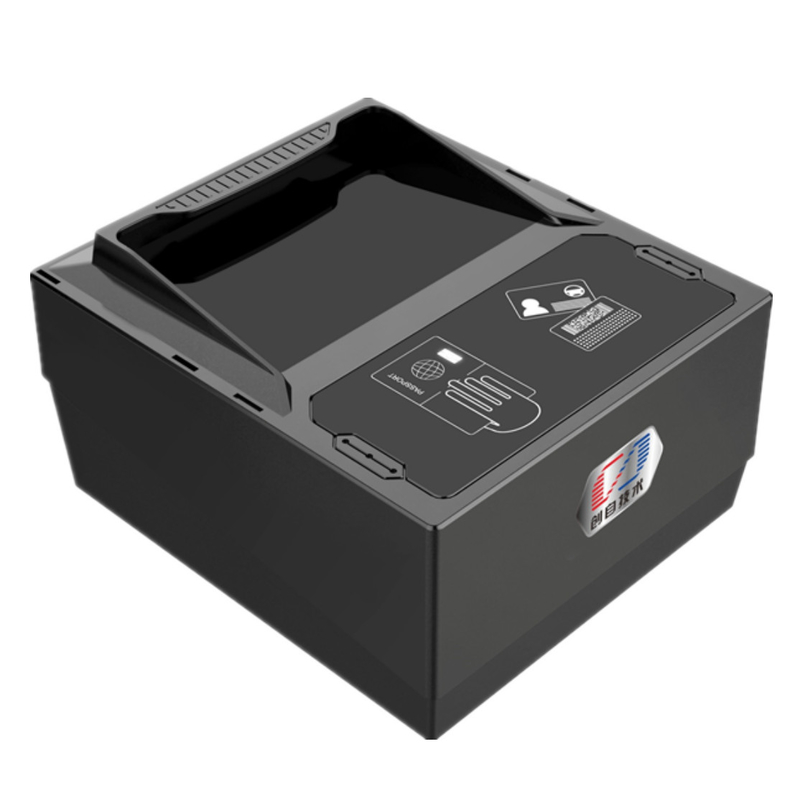

E-passport reader CRT-603-9001 ID card reader information recognition

ICAO DOC 9303 standard e-passport, visa, driver's license, ID card and other travel documents, support automatic induction trigger, simple and easy operation, which is very suitable for application in border inspection station, customs, airport, immigration administration and other places.



603-9001_00(1)



E-passport reader CRT-9001 product feature:

E-passport chip can read the international standard of ICAO DOC 9303 e-passport, such as passport, visa and other travel documents

OCR can identify ID card, driver's license, passport, Hong Kong and Macao pass, Taiwan compatriot pass, driving license and other ID cards

5 megapixel high-definition imaging, physical resolution up to 400DPI, meet the needs of user image archiving

The built-in second generation card reader module can directly read the information of the second generation card chip and expand its application in China

The e-passport reader supports a variety of light sources, such as visible light image acquisition, infrared light recognition and ultraviolet anti-counterfeiting

Automatic trigger, convenient for users to operate, suitable for automatic, self-service occasions



E-passport reader CRT-9001 product specification:



Item Description
System support Windows(support 64 / 32 bit for XP or above system),Linux
Image acquisition

Acquisition area 140*103 mm

Sensor CMOS 5 megapixel(2048*1536)

Resolution 400 dpi

light source Multi band light source: visible light, infrared 850 nm, ultraviolet 365 nm

Identification of certifications

(OCR)



It supports image acquisition and information recognition of ID card, driver's license, passport, Hong Kong and Macao pass, Taiwan compatriot pass, driving pass and other ID cards

Support ICAO9303 standard passport, visa and other travel documents image acquisition and information recognition, including machine-readable code and other layout information

Fast photo recognition

E-passport card reading

Support ICAO9303 standard e-passport card reading, short reading time

Support ISO 14443 type A / B card reading

Support basic access control (BAC) of e-passport

Support e-passport passive authentication to verify the authenticity of certificate information

Support e-passport active authentication to verify the authenticity of certificate chip

2nd ID card reading It supports RFID card reading of 2nd ID card, and reading time is short
Communication interface

Data communication interface: USB 2.0

Support USB interface expansion, connect to other USB devices

Auto trigger Support automatic induction and trigger the identification for certifies
APP Support Windows XP/Windows 7/Windows 8/Windows 10
SDK SDK supports secondary development
Dimension 170mm×142mm×60mm
Power supply Use external standard power adapter, power adapter specification:
Input: AC 100~240V 50-60Hz 0.8A
Output: DC 12V 2A
Work environment Humidity: 20% to 95% (no condensation at relative humidity)
Temperature: - 10 ° C to 50 ° C for operation; - 20 ° C to 50 ° C for storage



E-passport reader CRT-9001 application industry:

Ministry of public security

─Immigration administration Personnel management of foreigner

Management of hotels and institutions for concerning foreign affairs

─Border Check Point Entry-exit certificate inspection

Customs head office Customs clearance certificate inspection

Ministry of Foreign Affairs Visa issuing, ** information collection

Civil Aviation Self service ticketing, boarding and security certificate inspection

Railway Electronic * * Automatic Fare Collection
