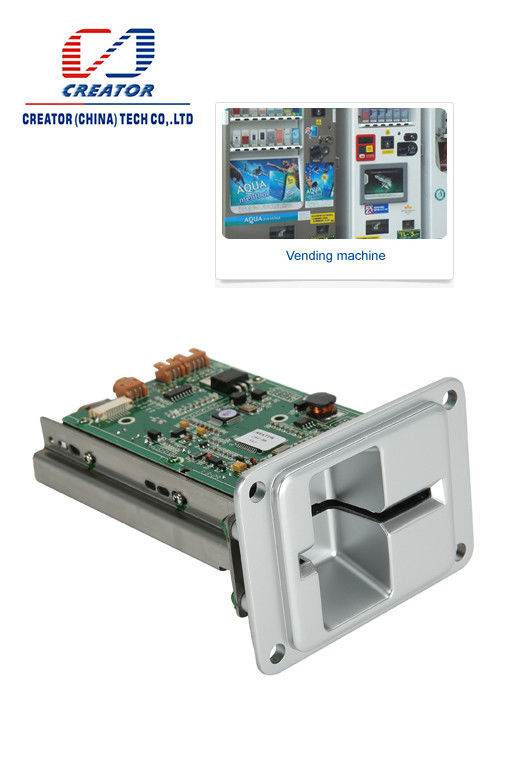

Manual Insert Dip Card Reader RS232 IC Smart Card Reader With Card Latch Function

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Creator
Certification: EMV, CE
Model Number: CRT-288
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Payment Terms: 100% full TT advanced payment
Detail Information
Application: Kiosk Card Type: IC|RF
Certification: EMV Feature: Smart
Interface: RS232 Power Supply: DC 5V
High Light:

Manual Insert Dip Card Reader

,

Card Latch Dip Card Reader

,

RS232 IC Smart Card Reader


Product Description

Manual Insert Dip Card Reader With Card Latch Function , IC Smart Card Reader





Description:



• IC&RF card read &write
• Automatically lock the card,manual/auto card ejection
• Special design for protecting reader from foreign object
• Multiple bezel options

• PSAM board option

• EMV certified

• Special baffle design for protecting reader from foreign object







Applications:



Fuel dispensing, gaming, government, parking system, transportation AFC, utility







Specifications:



Card type

IC Card:

Support ISO7816-2
Support  T=0,T=1  CPU Card
Support  T=0,T=1  SAM Card ( need to use PSAM board )
RF Card:support ISO14443 TYPE A&B card

Card dimension

Width:53.92~54.18mm,Length:85.47~85.90mm
Thickness:0.76~1mm(Factory standard 0.76mm)

Power supply

DC5V±5%

Communication interface

RS-232

Lifetime

IC card contact: 300,000 times min
Lock mechanism: 500,000 times min

Micro switch: 500,000 times min

M.T.B.F

>100,000 hours (Electronic components only)

Environmental conditions

Operation:0℃~50℃/0 ~ 90% RH (Non condensing)
Storage:-25℃~80℃/0 ~ 95% RH (Non condensing)

Weight

About 240gManual Insert Dip Card Reader RS232 IC Smart Card Reader With Card Latch Function 0
