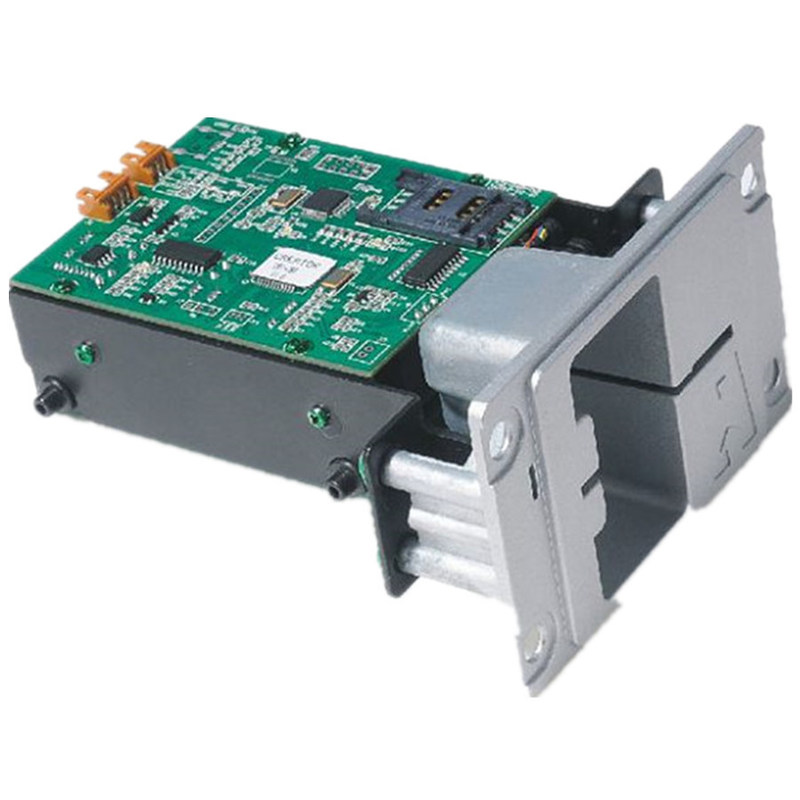

USB IC / RF Magnetic Insert Card Reader

Basic Information
Place of Origin: China
Brand Name: CREATOR
Certification: CE EMV EMC RoHs
Model Number: CRT-288-K
Minimum Order Quantity: 1PC
Price: USD 80-90 /PC
Packaging Details: 20*15*10CM
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10,000pcs / month
Detail Information
Interface: RS232/USB Function: IC/RFID Card Read/write,magnetic Read Only
Voltage: 5V(power By USB) Feature: With Card Lock And PSAM
High Light:

manual card reader

,

insert card reader


Product Description

Self-service Terminal USB RS232 IC/RF Magnetic Dip Card Reader

Specifications



Item Description
Magnetic stripe ISO 7810, 7811
Track 1,2,3 Hi-co/Lo-co read only
Contact smart card ISO 7816-1,2,3,4
CPU card (T=0, T=1)
(Support)T=0,T=1 PSAM card
Contactless smart card (optional) ISO 14443 type A & B, Mifare one, S50,S 70,ULMifare plus, and Desfire .
Interface RS232/USB
Power DC 5V±10%
Life time

Micro switch: 500,000 times Min IC contact: 300,000 times Min



Environment conditions Operation: 0℃~50℃,0~90% RH (Non condensing)
Storage: -25℃~80℃,0~95% RH (Non condensing)
Dimension 78mm (W) * 35.1mm (H) * 110.5mm (L)
Weight Approx 200g



Features



- IC&RF card reading&writing,magnectic stripe card read only

- Special baffle design for protecting reader from foreign object

- Small dimensions, easy maintenance, cost efficient

- Customization services

- Two kinds of communication interface: USB&RS232

- EMV certified



Applications



- Self-service terminal

- Recharging machine

- Tanker

- Media inquiry machine

- Access control system

- Vending machine

- ATM
