Anti Collision 13.56 MHz Contactless Smart Card Reader EMV Certification
  • Anti Collision 13.56 MHz Contactless Smart Card Reader EMV Certification

Anti Collision 13.56 MHz Contactless Smart Card Reader EMV Certification

Place of Origin Shenzhen, China
Brand Name Creator
Certification EMV CL, RoHS, CE, QPBOC, EMC, WHOQ
Model Number CRT-603-CZ1
Product Details
Operating Frequency:
13.56 MHz
Power Supply:
High Light:

13.56 MHz Contactless Smart Card Reader


EMV Contactless Smart Card Reader


3.56 MHz rfid contactless card reader

Product Description

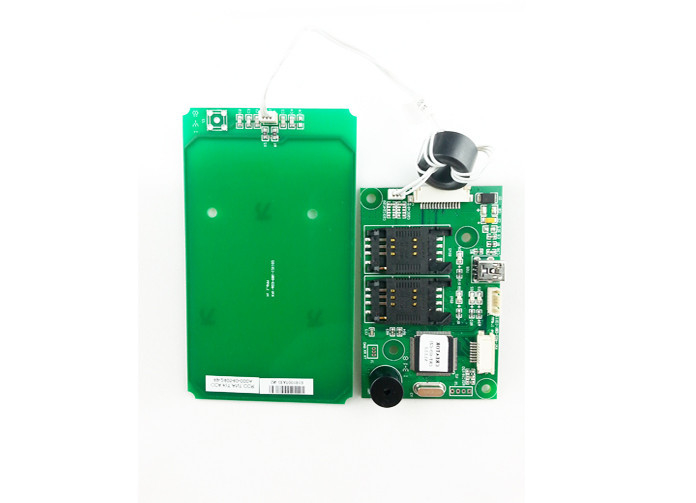

13.56 MHz Contactless RFID Card Reader




  • USB2.0 full speed, PC/SC communication, CCID driver, easy operation
  • Support contactless card conforming to ISO14443-3/4 criterion typeA&typeB card
  • Cards anti-collision function : Error and certain information can be reported once more than one card appear simultaneously
  • Conforming to banking payment application, to ensure an easier and safer payment
  • With SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing
  • Support Windows XP and Windows 7 operation system
  • EMV contactless Level 1 Certificated
  • PBOC 3.0 contactless certified
  • Separate 4 color LED indicator board
  • Firmware online update through USB ( supplier IAP tool provided )




* Access control terminal

* Supermarket payment

* Food transport

* Communication and transportation

* Home-banking

* Retail POS/Banking

* Electronic Commerce

* Identification/Payment

* Anti-fake/Library management





Card type

RF Card:ISO14443Type A&B
SAM card:

ISO7816 T=0,T=1 SAM card ( 2 SAM slots )

Power supply

DC 5V ± 5%

Operating current


Reading distance

70mm(depends on card)

Communication interface


Operating frequency

13.56 MHz

Environmental conditions

Operation:0 ~ 50℃/0 ~ 90%RH (Non condensing)
Storage:-10 ~ 75℃/0 ~ 90%RH (Non condensing)


About 100 g


Advantage Of RFID Card Reader

1. Support 2D/1D barcode and support screen and paper barcode

2. 1GHz 32 bits CPU,high speed for data processing.

3. Temperature resistance can reach 105℃,long service life.

4. Small size, powerful and easy to integrate in industrial equipment.

5. It supports 2nd development,multiple development language,also SDK.

6. Highly cost-effective,highly sales volume.

7. We can offer the FFC flat cable for free and 12pin connector if client needed.
