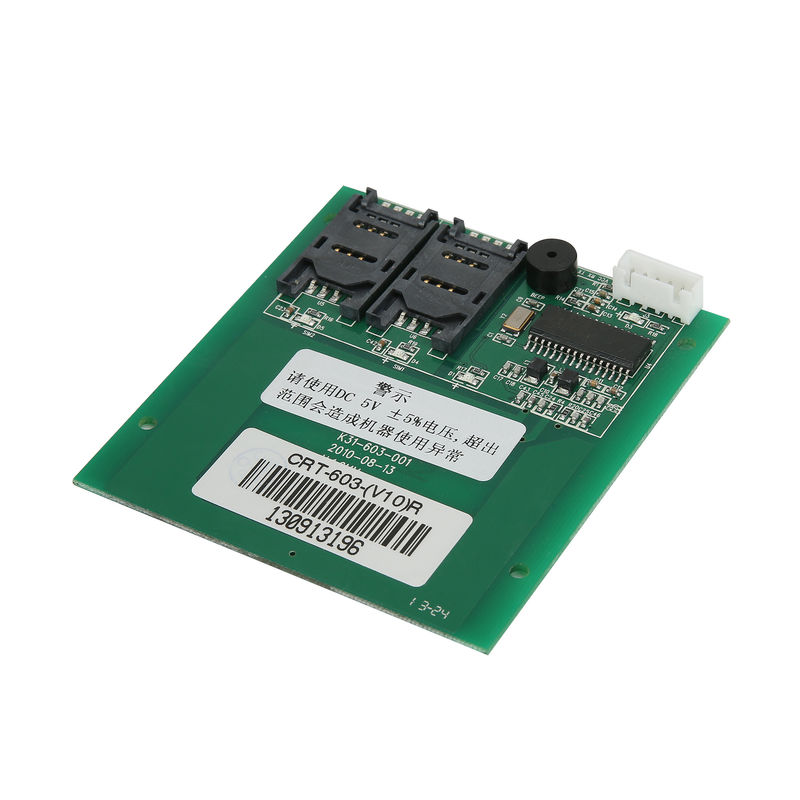

RS-232 RFID Contactless Smart Card Reader , SAM Card Reader For Retail
  • RS-232 RFID Contactless Smart Card Reader , SAM Card Reader For Retail

RS-232 RFID Contactless Smart Card Reader , SAM Card Reader For Retail

Place of Origin Shenzhen, China
Brand Name Creator
Certification EMV CL, RoHS, CE, QPBOC, EMC, WHOQ
Model Number CRT-603-CZ1
Product Details
Application:
Access Control, Utility
Card Type:
RFID, IC
Certification:
ISO
Feature:
Contactless
Interface:
RS232
Operating Frequency:
13.56 MHz
Power Supply:
DC 5V
High Light:

rfid smart card reader writer

,

chip card reader and writer

Product Description

RS-232 RFID Contactless Smart Card Reader , SAM Card Reader For Retail



Description:



  • RS-232 interface
  • Support contactless card conforming to ISO14443-3/4 criterion typeA&typeB card
  • With 2 SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing
  • Support Windows XP and Windows 7 operation system
  • Programmable LED&Buzzer





Applications:



Access control, Education, Retail, government, utility





Specifications:



Card type

RF Card:ISO14443Type A&B
SAM card:

ISO7816 T=0,T=1 SAM card ( 2 SAM slots )

Power supply

DC 5V ± 5%

Operating current

<150mA

Reading distance

70mm(depends on card)

Communication interface

RS-232

Operating frequency

13.56 MHz

Environmental conditions

Operation:0 ~ 50℃/0 ~ 90%RH (Non condensing)
Storage:-10 ~ 75℃/0 ~ 90%RH (Non condensing)

Weight

About 100 g

RS-232 RFID Contactless Smart Card Reader , SAM Card Reader For Retail 0
