EMV Contactless Smart Card Reader Anti - Collision Support Windows 7 Operation System
  • EMV Contactless Smart Card Reader Anti - Collision Support Windows 7 Operation System

EMV Contactless Smart Card Reader Anti - Collision Support Windows 7 Operation System

Place of Origin Shenzhen, China
Brand Name Creator
Certification EMV CL, RoHS, CE, QPBOC, EMC, WHOQ
Model Number CRT-603-CZ1
Product Details
Application:
Utility|Bank
Card Type:
RF|IC
Certification:
EMV
Feature:
Contactless
Interface:
USB
Operating Frequency:
13.56 MHz
Power Supply:
DC 5V
High Light:

rfid smart card reader writer

,

chip card reader and writer

,

Anti Collision Smart Card Reader

Product Description

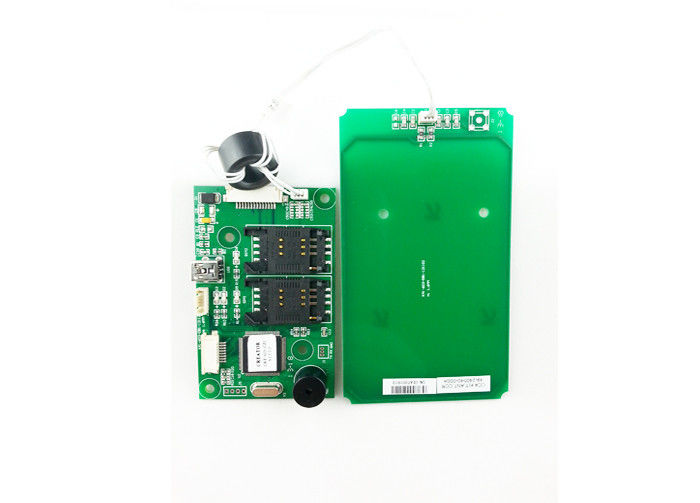

13.56 MHz Contactless RFID Card Reader



Description:



  • USB2.0 full speed, PC/SC communication, CCID driver, easy operation
  • Support contactless card conforming to ISO14443-3/4 criterion typeA&typeB card
  • Cards anti-collision function : Error and certain information can be reported once more than one card appear simultaneously
  • Conforming to banking payment application, to ensure an easier and safer payment
  • With SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing
  • Support Windows XP and Windows 7 operation system
  • EMV contactless Level 1 Certificated
  • PBOC 3.0 contactless certified
  • Separate 4 color LED indicator board
  • Firmware online update through USB ( supplier IAP tool provided )





Applications:



Bank, retail, government, transportation AFC, utility





Specifications:



Card type

RF Card:ISO14443Type A&B
SAM card:

ISO7816 T=0,T=1 SAM card ( 2 SAM slots )

Power supply

DC 5V ± 5%

Operating current

<120mA

Reading distance

70mm(depends on card)

Communication interface

USB

Operating frequency

13.56 MHz

Environmental conditions

Operation:0 ~ 50℃/0 ~ 90%RH (Non condensing)
Storage:-10 ~ 75℃/0 ~ 90%RH (Non condensing)

Weight

About 100 g



EMV Contactless Smart Card Reader Anti - Collision Support Windows 7 Operation System 0
