ATM Motorized Contact Smart Card Reader / Writer , SIM Card Reader ROHS

Basic Information
Place of Origin: Shenzhen, China
Brand Name: CRT
Certification: EMV Level1 approved/CE certificate
Model Number: CRT-350
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: 4pcs/each carton
Payment Terms: 100% full TT advanced payment
Detail Information
Application: ATM|Kiosk Card Type: RFID|IC|Magnetic Stripe|CPU
Certification: EMV Feature: Smart
Interface: RS232|USB Power Supply: DC 24V
High Light:

motorized magnetic card reader

,

rfid card reader


Product Description

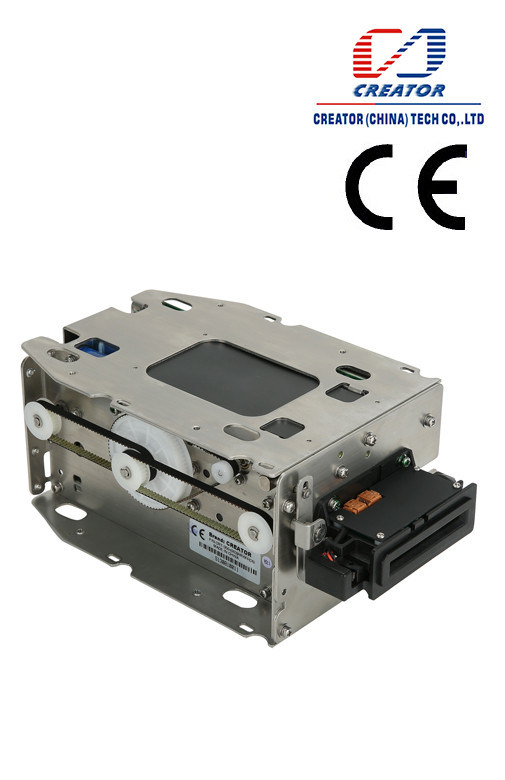

ATM Motorized Contact Smart Card Reader / Writer , SIM Card Reader ROHS



Quick Detail:



CRT-350 series are motorized card reader and writer which can read/write IC/RFID/Magnetic card.





Description:



Motorized card reader CRT-350 with below main features:

  1. 3 in 1:IC/RFID/Magnetic card read/write
  2. Hi-Co (2500 Oe-4000 Oe, 2750 Oe the best)& Lo-co(250 Oe-700 Oe, 300 Oe the best) for option
  3. Capture card from the front and rear
  4. Reject abnormal card and extra long card
  5. Two anti-skimming ways: hardware and software
  6. Multiple kinds of shutter options
  7. Optional components: power-fail protection & PSAM board(4/8bits)
  8. Conform to WOSA/XFS 2.0/3.0 and SP provided
  9. Optional interface: RS232 & USB(HID)
  10. Life time: 1,000,000 times min.
  11. Conform to EMV and ROHS standard





Applications:



ATM

Payment systems

Kiosk terminals

Access control terminals

Security terminals

Parking systems





Specifications:



Card standard

Magnetic Card: ISO7810 ID-1,7811
IC Card: ISO7816-2
Support T=0,T=1 CPU Card
Support T=0,T=1 SIM Card
RF Card: ISO14443 TYPE A&B
Support Mifare S50,S70,UL Card

Life time

Magnetic head:500,000  passes

IC card contact:300,000 passes

Motor:500,000 passes

Communication

RS232 interface & USB interface option (HID)

Power supply

DC24V±5%

Current consumption

Standby current: 90mA

Peak current: 800mA

Temperature/Humidity

Operation:0~50℃/0 ~ 90% RH(Non condensing)
Storage:-25-80℃/0 ~ 90% RH(Non condensing)

Dimension (LxWxH)

215x124x90mm

Weight

Approx .1.8kg





Competitive Advantage:



★ High security design

★ Compatible with other brand’s external dimension and communication protocol

★ PSAM Board for option

★ Reject abnormal card automatically

★ Tamper-Proof Design

★ Hi-co & Lo-co for option, if choose Hi-co, Both Lo-co and Hi-co can be operated.
