| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CRT |
| Model Number: | CRT-603 series |
| Minimum Order Quantity: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 1PCS |

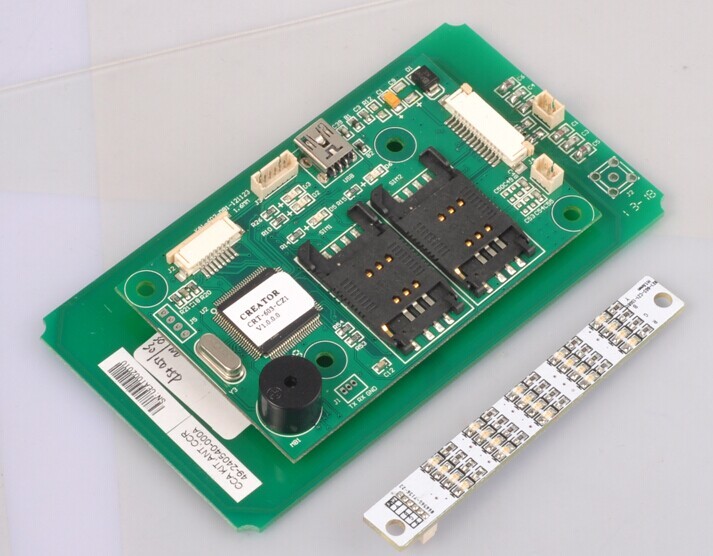

The CRT-603-CZ7-6001 contactless card reader module with detachable antenna board is developed based on the 13.56 MHz contactless technology.This contactless card reader module is designed for fast and easy integration into embedded systems.such as ATM,automatic fare collection system,ID identification system,card managemnet system,parking system etc.
Contactless card Reader Module CRT-603-CZ7-6001 product feature
High reliability with encryption
Support avoiding mutiple card conflict
Extendable parts,interface,optional parts available
IC card module
Card-swiping slot module
ID card module
125K EMID module
LED light set
2pcs PSAM module
8pcs PSAM module
Antenna customizable
WOSA complied
Contactless card Reader Module CRT-603-CZ7-6001 product specification
|
Card type |
IC card ISO7816 RFID Card ISO14443 Type A & B Mifare Classic 1k (S50);Mifare classic 4K(S70) Mifare Ultralight Support transparent mode only TOPAZ card |
|
NFC standard |
Support three-mode NFC Read RFID mode Point-to-Point NFC communication mode Simulate card mode Support four-mode NFC tag |
| Working frequency | 13.56MHz |
| Power supply | DC 5V (USB powered) |
|
Operation current |
Idle <150mA Operation <200mA Peak <250mA |
| Communication interface | USB2.0 full speed (PC/SC CCID Drive) |
Contactless card Reader Module CRT-603-CZ7-6001 product application
ATM
Automatic fare collection system
ID identification system
Card management system
Parking system
Access control system
Security terminal
Payment kiosk
