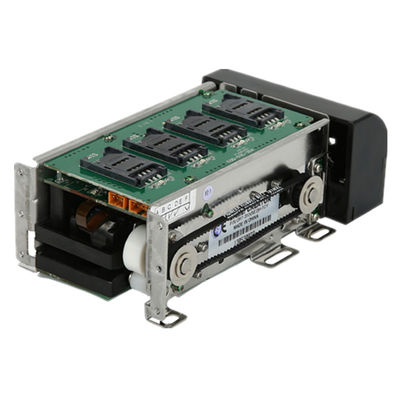

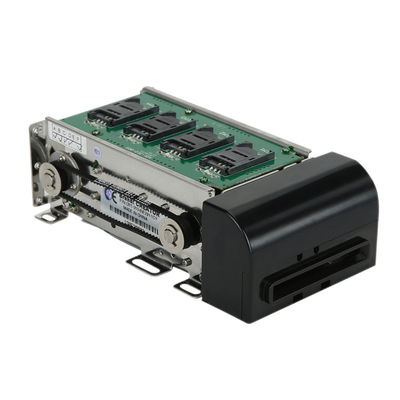

Motorized Card Reader For Self - Service Kiosk

Basic Information
Place of Origin: China
Brand Name: CREATOR
Certification: EMV,CE,RoHs,EMC
Model Number: CRT-310-004
Minimum Order Quantity: 1pcs
Price: USB 180-200 Per Piece
Packaging Details: 1PC 20*12*10cm
Payment Terms: Western Union, T/T, MoneyGram,PayPal
Supply Ability: 10,000 PCS / Month
Detail Information
Certificate: CE,EMV,EMC,RoHs Interface: RS232 / USB
Reliability: 500,000 Times Transport Application: Self-service Kiosk,parking System
High Light:

motorized magnetic card reader


rfid card reader

Product Description

EMV motorized card reader magnetic strip IC RFID card for self-service kiosk queuing machine


Product Specification


Specifications Product Descriptions
Applications ◆Banking,communication & healthcare
◆Card read,write & dispense
Card-reading-writing Type ◆Magnetic Card ◆IC ◆RFID Card
Card Type Supported ◆Magnetic card:ISO 7810,ISO 7811 read only
◆IC Card:ISO7816-1,2,3,4/EMV/PBOC(Support T=0,T=1 CPU SAM)
◆RFID card: ISO 14443 TYPE A & B,Mifire S50,S70,UL,Mifireplus.desfile
Feature ◆Support 4 PSAM
◆Highly reliable electric-controlled shutter
◆Support power down handling
Certifications ◆EMV4.22 L1 & PBOC3.0 L1 Certified
◆CE,RHOS & EMC Approved
Interface RS-232/USB
Working Voltage DC 12V±10%
Working Current ◆Idle current less than 250mA
◆Peak current less than 2500mA(last for 50ms)
◆Working current less than 1200mA
Reliability Life ◆Card-reading error rate:≤ 0.1%
◆Magnetic head life: 500,000 passes
◆IC card contact: 300,000 passes
◆Transmission Unit: 500,000 passes


Competitive Advantage


-RFID/IC card read/write, magnetic stripe card read only.

-Automatic insertion/ejection of the cards

-Insert and eject card from both front and rear

-Automatic Electric shutter

-Power-fail protection

-4 PSAM board and LED for option

-Abnormal card processing

-Support IAP download

-Best sales product(More than 420,000 pcs were sold totally)




-Casino gaming device

-Card collection in parking system

-self-service machine

-Automatic fare collection
