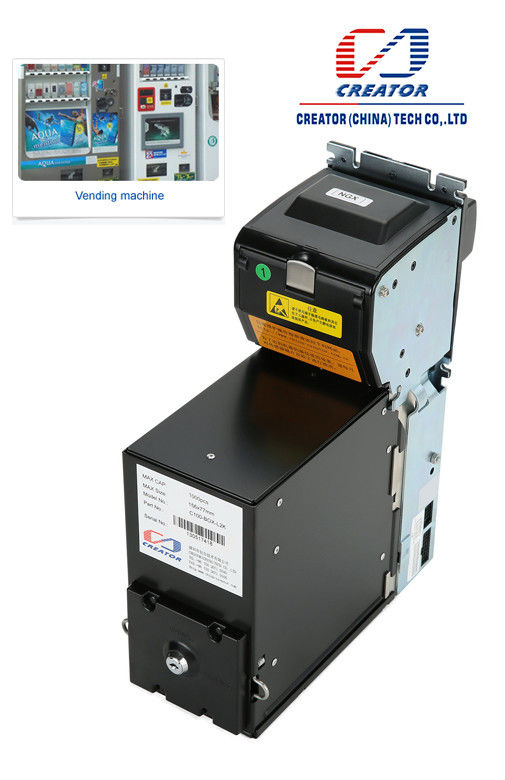

Anti - Counterfeits Self Service Payment Machine With Inductive And Dielectric Sensors
  • Anti - Counterfeits  Self Service Payment Machine With  Inductive And Dielectric Sensors

Anti - Counterfeits Self Service Payment Machine With Inductive And Dielectric Sensors

Place of Origin Shenzhen, China
Brand Name CRT
Certification EMV CL, RoHS, CE, QPBOC, EMC, WHOQ
Model Number C100-RUB-B01 C100-UAH-B01
Product Details
Applications:
Self-service Payment Machine|Gaming Machine|Vending Machine
Communication Interface:
RS-232|CCNET Serial Port|CCNET Protocol
Feature:
Intelligent|Smart
Operating Voltage:
DC12V
Other Name:
Bill Validator
Product Name:
Bill Acceptor
High Light:

vending machine bill validator

,

cash acceptor machine

,

Payment Machine Bill Acceptor

Product Description

Hryvnia Kiosk Bill Acceptor



Quick Detail:



Advanced auto-calibration;

Advanced high-performance optical, inductive and dielectric sensors for identification anti-counterfeits feature;

Any of four direction of insertion;

Anti-phishing design;

Self-diagnosis;

Lock and removable secure stacker;

Beltless transportation design;

RS232-upgradable;

Track record for stacker installation and remove;

Collective notes in stacker is always tracked with a record;

Support to detect altered notes





Description:



This is a compact and integrated bill acceptor with the functions of advanced auto-calibration, denomination detected, anti-counterfeit notes, anti-phishing, lockable / removable secure stacker and running status auto-tracking.





Applications:



Recharging machine
Tanker
Automatic vending machine
Gaming machine
Self-service payment machine





Specifications:



Operating voltage

DC12V

Operating current

Static:300mA
Peak:2000mA

Communication interface

RS-232 / CCNET  Serial port, CCNET protocol

Denomination

rub:5000,1000,500,100,50,10

Hryvnia:500,200,100,50,20,10,5,2,1

Complete transport cycle

3s

Notes-insertion

Four directions (No folded or no wrinkle)

Notes validation rate

98%

Sensors

Advanced optical, inductive, dielectric, anti-phishing sensors

M.T.B.F

1,500,000 cycles

Temperature

Operation:-10℃ ~ 50℃,0 ~ 90% RH(Non condensing)
Storage:-25℃ ~ 80℃,0 ~ 95% RH(Non condensing)

Firmware updates

Through the RS232 serial programming mode PC RS232

Weight

Head:1750g
Stacker 1000:1550g

Dimensions (W*H*D)

104×131×273mm
