Smart Card Dispenser With Pre-Card Dispensing , RF / IC Magnetic Card Dispenser
  • Smart Card Dispenser With Pre-Card Dispensing , RF / IC Magnetic Card Dispenser

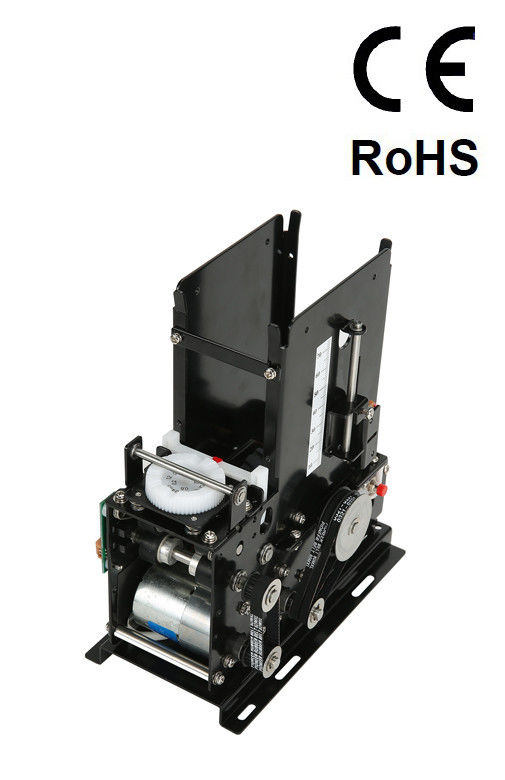

Smart Card Dispenser With Pre-Card Dispensing , RF / IC Magnetic Card Dispenser

Place of Origin Shenzhen, China
Brand Name Creator
Certification CE, EMV
Model Number CRT-541
Product Details
Applications:
Access Control System
Card Standard:
ISO
Card Type:
RF|IC|SIM
Interface:
RS-232C|TTL
Type:
Magnetic Card Dispenser
Voltage:
DC 24V
High Light:

automatic card dispenser

,

magnetic card dispenser

,

Magnetic Smart Card Dispenser

Product Description

Smart Card Dispenser With Pre-Card Dispensing , RF / IC Magnetic Card Dispenser


Applications:
• Automatic vending machine
• Highway card issuing system
• Subway and public transport card issuing
• Ticket vending system
• Prepaid card vending system



Quick Detail:

Pre-issuing capabilities to speed up issuing speed
Unique design of the paper card issuers
Special design for protecting reader from foreign object
Extended design makes card capacity of stacker flexible
· Prevent 2 cards dispensing.
· Paper card dispensing design.
· Easy adjustment of card thickness.
· Easy card loading & maintenance.
· Support ISP downloads on-line.
· Support multi-units communication.
· Card stacker empty and pre-empty detection.
· Pre-Card dispensing function.
· Iron-Block available to fit.
· RoHS standard compliant.


Description:

CRT-541 Card Dispenser
• Output gap fixed design against dual card feeding
• Pre-issuing capabilities to speed up issuing speed
• Unique design of the paper card issuers
• Special design for protecting reader from foreign object
• Extended design makes card capacity of stacker flexible
• RoHs compliant





Specifications:

ITEM

Specification

Power Supply

DC 24V±5%

Current Consumption

Static current: 10mA   Normal work current: 800mA    Peak current: 1.5A

Card feed-out speed

> 1 Card/s (Transportation Speed)

Interface

RS-232C, TTL(customized)

Card Dimensions

Size: 55mm×86mm
Thickness: ≥0.20mm (≥1.2mm require customization)
Ex-work standard card thickness is 0.8 mm

Weight

About 2.0 Kg(without accessories and package)

Card stacker capability

120pcs in case of 0.76mm standard card (Available to set to 500pcs max)

Card pre-empty detection

7~50pcs ± 2pcs (Default setting: 15pcs)

Environment

Operation:  0℃~50℃,  0~90 % RH  ( Without Condensing)
Storage:  -10℃~75℃,  0~95 % RH  ( Without Condensing)

MTBF

≥100,000 hr(only electric parts), note:250 times/day,25days/month,300hr/month

life time

500,000 times ( In the condition: 20±5%, 35~60%RH, ≤ 1pcs/min)

RoHS standard

Compliant RoHS standard































Smart Card Dispenser With Pre-Card Dispensing , RF / IC Magnetic Card Dispenser 0
