Smart Card Dispenser
>
|
| Place of Origin | CHINA |
| Brand Name | CREATOR |
| Certification | EMV & PBOC |
| Model Number | CRT-591-D |

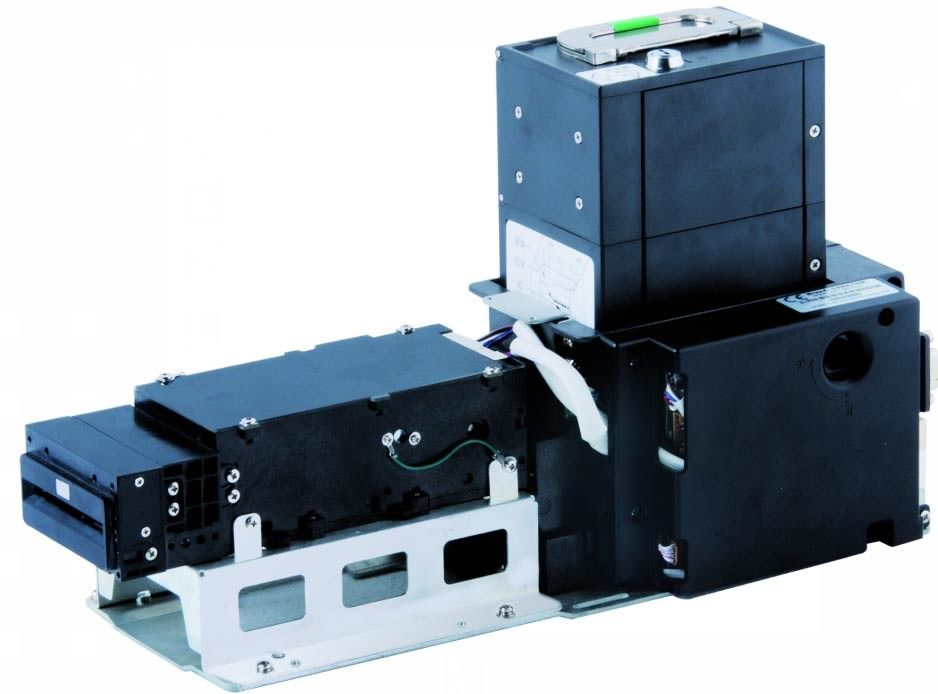

This Kiosk card dispenser CRT-591-D supports retract & issue IC/RFID/magnetic stripe card,with card empty,pre-empty,card bin status detection with alarm function.
Kiosk card dispenser CRT-591-D product feature
Support dispensing cards of reading & writing IC/RF cards,magnetic cards read only
Card-Empty, Pre-card empty detection with audible alarm
With a recycle box and support recycling cards;
With prevention of reversing and sloping functions,the dispenser and stacker with lockable mechanism design.
Technical Specification
| Card type |
Support type:Credit and debit card read TYPE of reading & writing:IC card and RFID Card, magnetic card read only Magnetic card standards: IS07810,7811,IS07811 - 2,IOS7811 - 4,ISO7811 - 5 , ISO7811 - 6 Card specification:IS07810ID - 1 (Magnetic standard)； Embossed card:IS07811 - 1 ; IS07811 - 3； Card dimension: Length:85.47 ~ 85.90 mm Width:53.92 ~ 54.18 mm thickness:0.76 mm±0.1mm IC card standard: Support ISO7816-1,2,3,4 Support PBOC2.0,PBOC3.0 Support EMV2000 Support PC/SC,CCID |
| Dispense card |
1.With hook mechanism and it could not scratch the card when it dispensing. 2.Available for flat card or embossed card 3.Dispenser speed : Approx.:60mm/s |
| Life time |
Transporting≥200,000 times magnetic stripe card re-read rate:≤1/1000 IC contact:up to 300,000 times Error rate<=0.02% MTBF≥10,000 hours (Only electric components) |
| Interface |
1.Standard: RS232 2.USB2.0 (Optional) 3.Bluetooth (Optional) 4.Voltage input(4pin),with backup power interface. |
| User experience |
1.flexible card supplement,easy for integrated cards supplement 2.the card output obviously, easy to take. 3.independent capture cassette design,easy to manage the cards 4.clear and quick trouble shooting |
Card dispenser CRT-591-D product application
Financical industry
Self-service dispenser
Kiosk
Automatic card-vending machine
Card-issuing system
