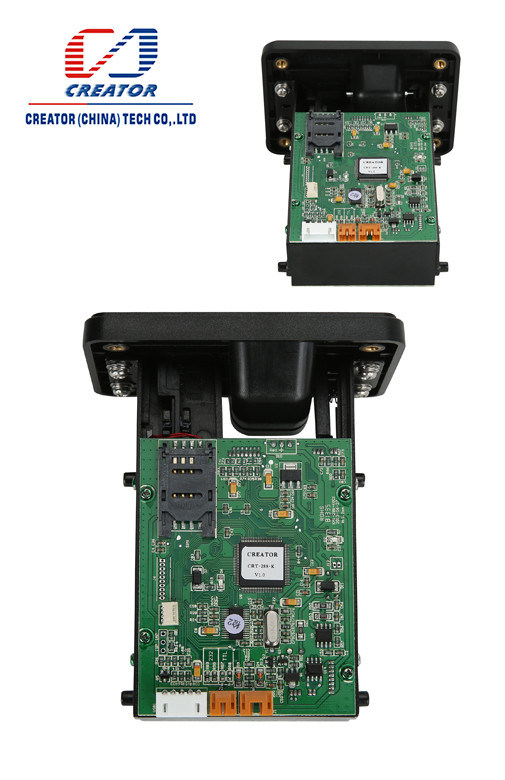

Hybrid Smart ATM Card Reader , Magnetic Stripe Card Reader RS232
  • Hybrid Smart ATM Card Reader , Magnetic Stripe Card Reader RS232

Hybrid Smart ATM Card Reader , Magnetic Stripe Card Reader RS232

Place of Origin Shenzhen, China
Brand Name Creator
Certification EMV
Model Number CRT-288-K
Product Details
Application:
ATM|Kiosk
Card Type:
Magnetic Stripe
Certification:
EMV
Feature:
Smart
Interface:
RS232
Power Supply:
DC 12V
High Light:

magnetic card reader writer

,

atm card reader parts

Product Description

Magnetic RF Dip Card Reader With Card Latch , Hybrid Smart Card Reader



Description:



  • IC&RF card reading&writing
  • Special baffle design for protecting reader from foreign object
  • Small dimensions, easy maintenance, cost efficient
  • Customization services
  • Two kinds of communication interface: USB&RS232
  • EMV certified





Applications:



Payphone, gaming, utility




Specifications:



Card type

IC Card:

ISO7816-2

T=0,T=1  CPU Card
T=0,T=1  PSAM Card ( 1 SAM slot )
RF Card:  ISO  14443  TYPE  A&B card

Card dimension

Width: 53.92~54.18mm, Length: 85.47~85.90mm
Thickness: 0.76~1mm

Lifetime

Micro switch: 500,000 times Min

IC contact: 300,000 times Min

Interface

RS-232&USB

Power voltage

DC 5V±10%

Power consumption

Static: 50mA
Peak: 200mA

Environment

Operation: 0℃~50℃,0~90% RH (Non condensing)
Storage: -25℃~80℃,0~95% RH (Non condensing)

Weight

About 200g
