Ticket Smart Card Dispenser , DC 24V Card Vending Machine CRT-541 ROHS Appliance
  • Ticket Smart Card Dispenser , DC 24V Card Vending Machine CRT-541 ROHS Appliance

Ticket Smart Card Dispenser , DC 24V Card Vending Machine CRT-541 ROHS Appliance

Place of Origin CHINA
Brand Name CREATOR
Certification ROHS
Model Number CRT-541
Product Details
Power Supply:
DC 24V ± 5%
Card Speed:
> 1pcs/s
Card Stacker Capacity:
120pcs / 0.76mm
Card Volume Alarm:
7~50 Pcs ± 2pcs
Weight:
About 2.0kg
High Light:

automatic card dispenser

,

magnetic card dispenser

Product Description

CRT-541 is a card dispenser with industrial design, fit for high and low temperature, dusty environments,Provides RS232 and TTL interface,it is widly used in automatic vending machine,gaming machine,ticket-vending system,parking system etc.



Ticket card Dispenser CRT-541 product feature
Unique design for dispensing paper card
Dust & foreign object resistance bezel design
Stackable design makes card capacity flexible
Pre-dispense function accelerate dispensing speed
Automatic buzzer alarm when fewer cards, no cards or failure
ROHS appliance
Ticket card Dispenser CRT-541 product specification

Card dimension Width:53.92~54.18mm
Length:85.47~85.90mm
Card thickness 0.4~1.2mm(EX-works 0.76mm)
Communication interface TTL/RS-232
Operation current Idle:<100mA
Peak:<1500mA
Card stacker capacity 120pcs/0.76mm standard card

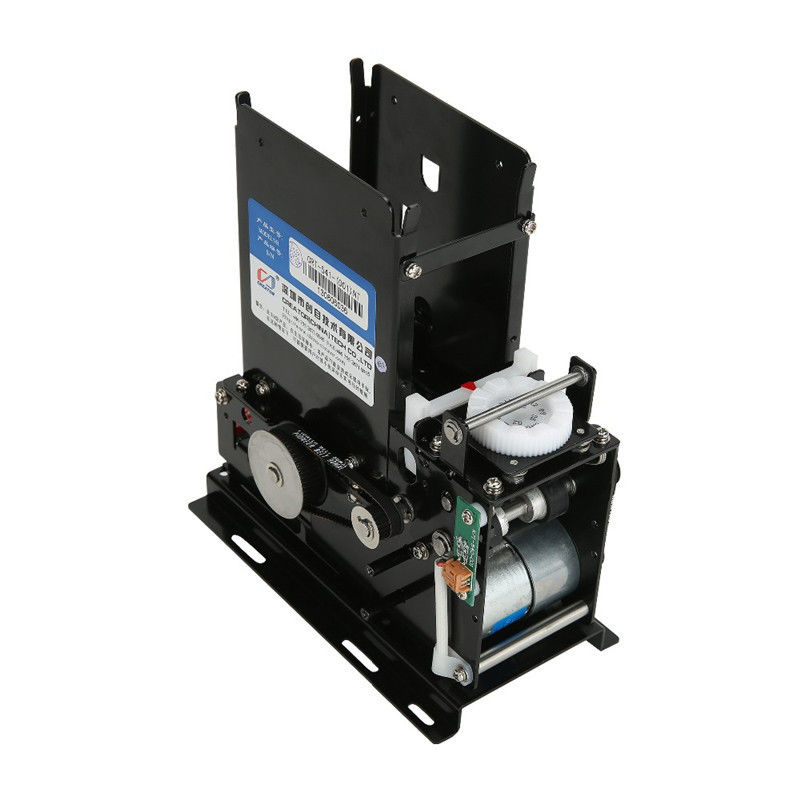

Card vending machine  CRT-541

Ticket card Dispenser CRT-541 product application
Intelligent parking system
Highway & bridge toll station card dispensing system
Gaming machine
Ticket vending system
Parking system
Prepaid card-vending system
Automatic vending machine
