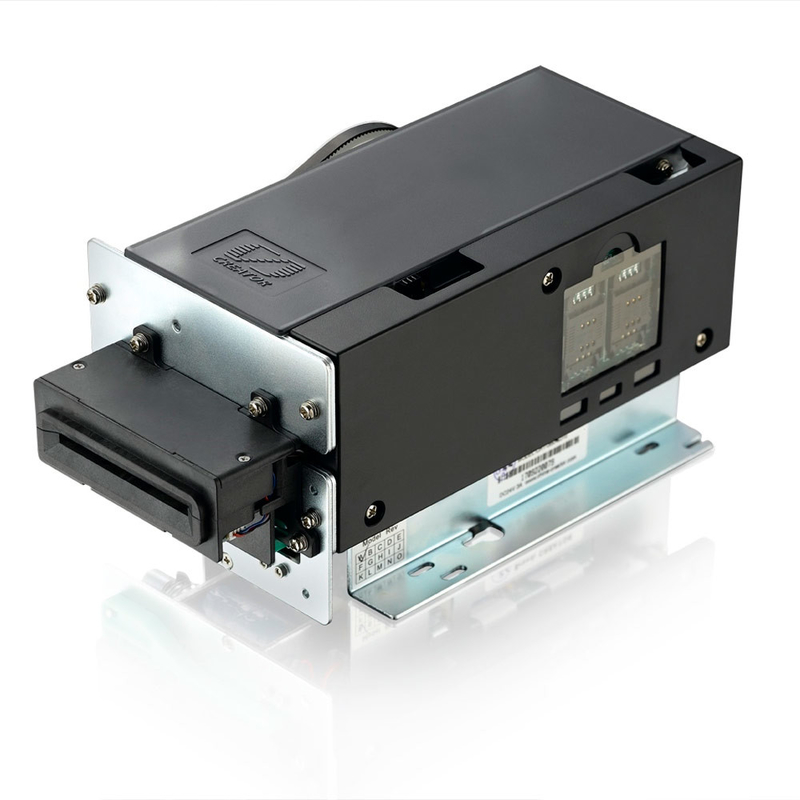

Hybrid Motorized ATM Card Reader
  • Hybrid Motorized ATM Card Reader

Hybrid Motorized ATM Card Reader

Place of Origin China
Brand Name CREATOR
Certification CE EMV EMC RoHs PBOC
Model Number CRT-350-N
Product Details
Interface:
RS232/USB
Voltage:
24V
Magnetic Card Type:
Hi-Co And Lo-Co
Function:
IC/RFID/magnetic Strip Card Read & Write
Highlight:

rfid card reader writer

,

atm card reader parts

Product Description

Hybrid Motorized ATM card reader encoder writer magnetic strip IC RFID banking kiosk

Specifications



Specifications Product Descriptions
Applications ◆Banking,communication & healthcare
◆Card read,write & dispense
Card Type Supported ◆Magnetic card:support read & write Hico/Lo-Co
◆IC Card:ISO7816-3/EMV/PBOC(Support T=0,T=1 CPU SAM)
◆SLE4442,SLE4428,24C01-24C64,AT88SC102
Feature ◆Support dual PSAM
◆Highly reliable electric-controlled shutter
◆Support power down handling
◆Support front jitter card insertion & anti-skiming
◆Compatible with Sankyo 3Q8
Encryption ◆Support Chinese commercial encryption computation (Hardware integrated )
◆Support universal encryption coputation like DES,3DES,AES
Certifications ◆EMV4.22 L1 & PBOC3.0 L1 Certified
◆CE,RHOS & EMC Approved
Interface RS-232
Working Voltage DC 24V±10%
Working Current ◆Idle current less than 250mA
◆Peak current less than 2500mA(last for 50ms)
◆Working current less than 1200mA
Reliability Life ◆Card-reading error rate:≤ 0.1%
◆Magnetic head life: 1,000,000 passes
◆IC card contact: 500,000 passes
◆Transmission Unit: 1,000,000 passes
Temperature & Humidity -10℃~55℃ 20%~ 80%RH



Features



-3 in 1:IC/RFID/Magnetic card read/write

-Hi-Co (2500 Oe-4000 Oe, 2750 Oe the best)& Lo-co(250 Oe-700 Oe, 300 Oe the best)

-Capture card from the front and rear

-Reject abnormal card and extra long card

-Two anti-skimming ways: hardware and software

-Multiple kinds of shutter options

-Optional components: power-fail protection & PSAM board(4/8bits)

-Conform to WOSA/XFS 2.0/3.0 and SP provided

-Optional interface: RS232 & USB(HID)

-Life time: 1,000,000 times min.

-Conform to EMV and ROHS standard



Competitive Advantages



- High security design

- Compatible with other brand’s external dimension and communication protocol

- PSAM Board for option

- Reject abnormal card automatically

- Tamper-Proof Design

- Hi-co & Lo-co for option



Hybrid Motorized ATM Card Reader 0Hybrid Motorized ATM Card Reader 1
