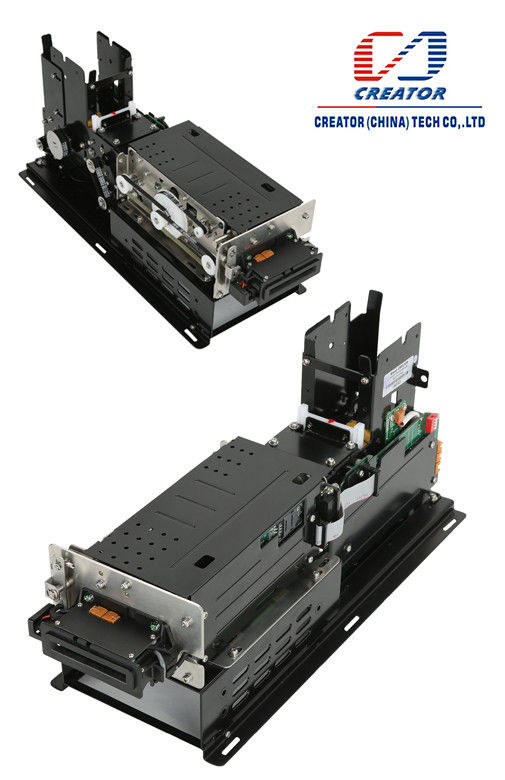

Card dispenser/card issuing machine with Magnetic/RFID/IC read/write
  • Card dispenser/card issuing machine with Magnetic/RFID/IC read/write

Card dispenser/card issuing machine with Magnetic/RFID/IC read/write

Place of Origin Shenzhen, China
Brand Name CRT
Certification EMV/PBOC
Model Number CRT-591-(001)HB-HDN
Product Details
Applications:
Vending Machine|Parking System
Card Standard:
ISO 14443 Type A, Type B, ISO187
Card Type:
S50,S70,UL,SLE4442,T=0,T=1,Hi-co,Lo-co
Interface:
RS-232C/USB
Stacker:
Removable Stacker
Voltage:
DC 24V
High Light:

card dispenser machine

,

automatic card dispenser

,

PBOC Card Dispenser

Product Description

Quick Detail:

CRT-591 card dispenser (IC/RFID/Magnetic card read &write, dispensing /capturing/accepting function, removable stacker with locking function, with EMV certified)



Description:

IC/RFID/Magnetic card read & write

With cards pre-empty detection

Stable card dispensing /capturing/accepting function

Removable stacker with locking function

Very compact and robust



Technical Specifications:

Card Standard

Magnetic Card: ISO7810 ID-1,7811
IC Card: ISO7816-2
Support T=0,T=1 CPU Card
Support T=0,T=1 SIM Card
RF Card: ISO14443 TYPE A&B
Support Mifare S50,S70,UL Card

Card thickness

0.2 ~ 1.0mm

Card size

55 × 86mm

Life Time

1,000,000 times

( In the condition: 20+/-5℃, 35~60%RH, Dispense cycle ≤ 1pcs/min)

Stacker Capability

120pcs / 0.76mm Standard Card

Removable stacker

Short card stacker 240pcs / Long card stacker 500pcs

Card Pre-empty Detection

7~50pcs ± 2pcs ( Default setting: 15pcs)

Communication

RS-232/USB(HID)

Power supply

DC 24V ± 5%

Temperature

Operation:0 ~ 50℃/0 ~ 90% RH(Non condensing)
Storage:-25 ~ 80℃/0 ~ 95% RH(Non condensing)

Dimension(L*W*H)

391.5*146.8*175mm

Weight

About 4.0kg



Applications:

Parking management system
Automatic card vending machine
Highway card issuing system



Annex 1 . Structure and Dimension Drawings



Card dispenser/card issuing machine with Magnetic/RFID/IC read/write 0



Card dispenser/card issuing machine with Magnetic/RFID/IC read/write 1
