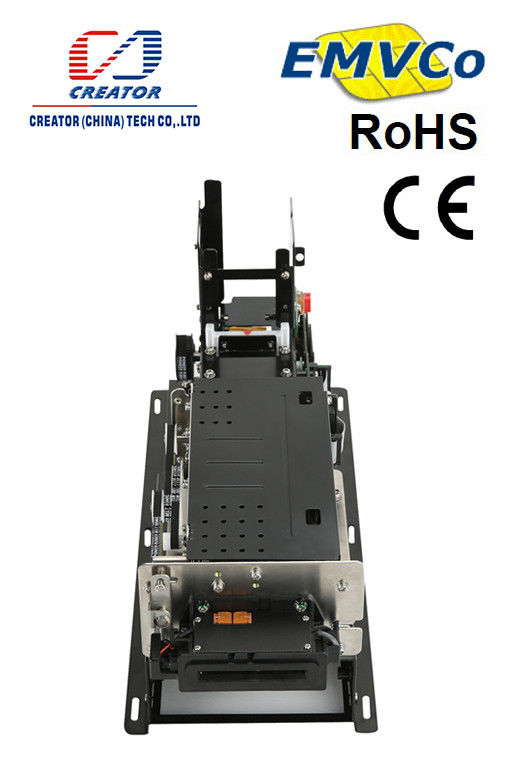

RS-232 Magnetic Card Dispenser With Pre-Card Dispensing , Parking System Card Dispenser

Basic Information
Place of Origin: Shenzhen, China
Brand Name: CRT
Certification: EMV/PBOC
Model Number: CRT-591-(001)HB-HDN
Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Delivery Time: 5-7days
Payment Terms: 100% full TT advanced payment
Detail Information
Applications: Vending Machine|Parking System|Access Control System Card Standard: ISO
Card Type: RF|IC Interface: USB|RS-232
Type: RFID Card Dispenser Voltage: DC 24V
High Light:

card dispenser machine

,

magnetic card dispenser


Product Description

Quick Detail:



CRT-591 card dispenser (IC/RFID/Magnetic card read &write, dispensing /capturing/accepting function, removable stacker with locking function, with EMV certified)





Description:



IC/RFID/Magnetic card read & write

With cards pre-empty detection

Stable card dispensing /capturing/accepting function

Removable stacker with locking function

Very compact and robust





Applications:



Parking management system
Automatic card vending machine
Highway card issuing system





Technical Specifications:



Card Standard

Magnetic Card: ISO7810 ID-1,7811
IC Card: ISO7816-2
Support T=0,T=1 CPU Card
Support T=0,T=1 SIM Card
RF Card: ISO14443 TYPE A&B
Support Mifare S50,S70,UL Card

Card thickness

0.2 ~ 1.0mm

Card size

55 × 86mm

Life Time

1,000,000 times

( In the condition: 20+/-5℃, 35~60%RH, Dispense cycle ≤ 1pcs/min)

Stacker Capability

120pcs / 0.76mm Standard Card

Removable stacker

Short card stacker 240pcs / Long card stacker 500pcs

Card Pre-empty Detection

7~50pcs ± 2pcs ( Default setting: 15pcs)

Communication

RS-232/USB(HID)

Power supply

DC 24V ± 5%

Temperature

Operation:0 ~ 50℃/0 ~ 90% RH(Non condensing)
Storage:-25 ~ 80℃/0 ~ 95% RH(Non condensing)

Dimension(L*W*H)

391.5*146.8*175mm

Weight

About 4.0kg





Annex 1 . Structure and Dimension Drawings



RS-232 Magnetic Card Dispenser With Pre-Card Dispensing , Parking System Card Dispenser 0

RS-232 Magnetic Card Dispenser With Pre-Card Dispensing , Parking System Card Dispenser 1
