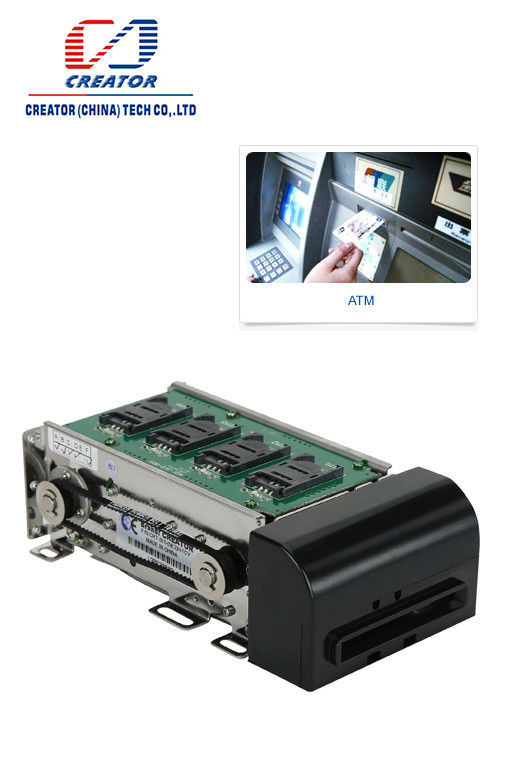

Smart Kiosk Card Reader

Basic Information
Place of Origin: Shenzhen, China
Brand Name: CRT
Certification: EMV Level1 approved, CE certificate
Model Number: CRT-310
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Payment Terms: 100% full TT advanced payment
Detail Information
Application: ATM|Kiosk Card Type: RFID|IC|Magnetic Stripe
Certification: EMV Feature: Smart
Interface: RS232 Power Supply: DC 12V
High Light:

magnetic card reader writer


magnetic stripe card reader


RFID Card Reader writer

Product Description

Smart Kiosk Card Reader


Quick Detail:


CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.





Motorized card reader CRT-310 with below main features:

★ RFID/IC card read/write, magnetic stripe card read only

★ Insert and eject the card from both front and rear side

★ RS232 interface

★ DC12V ±5%

★ DC24V/DC12V converter plate

★ Power-fail protection

★ Deal with abnormal cards function

★ Electric shutter and mechanical shutter for option

★ PSAM board for option

★ Support IAP Download





Kiosk terminals

Payment systems

Access control terminals





Card standard

Magnetic Card: ISO7810 ID-1,ISO7811
IC Card: ISO7816-2
RF Card: ISO14443 TYPE A&B

Life time

Magnetic head:500,000  passes

IC card contact:300,000 passes

Motor:300,000 passes


RS232 interface

Power supply


Current consumption

Static Current: 110mA

Peak Current: <1.5A


Operation:0~50℃/0 ~ 90% RH(Non condensing)
Storage:-20~70℃/0 ~ 90% RH(Non condensing)

Dimension (LxWxH)



Approx 410g



Competitive Advantage:


RFID/IC card read/write, magnetic stripe card read only.

Automatic insertion/ejection of the cards

Insert and eject card from both front and rear

Electric and mechanical shutter for option

Power-fail protection

PSAM board and LED for option

Abnormal card processing

Support IAP download
