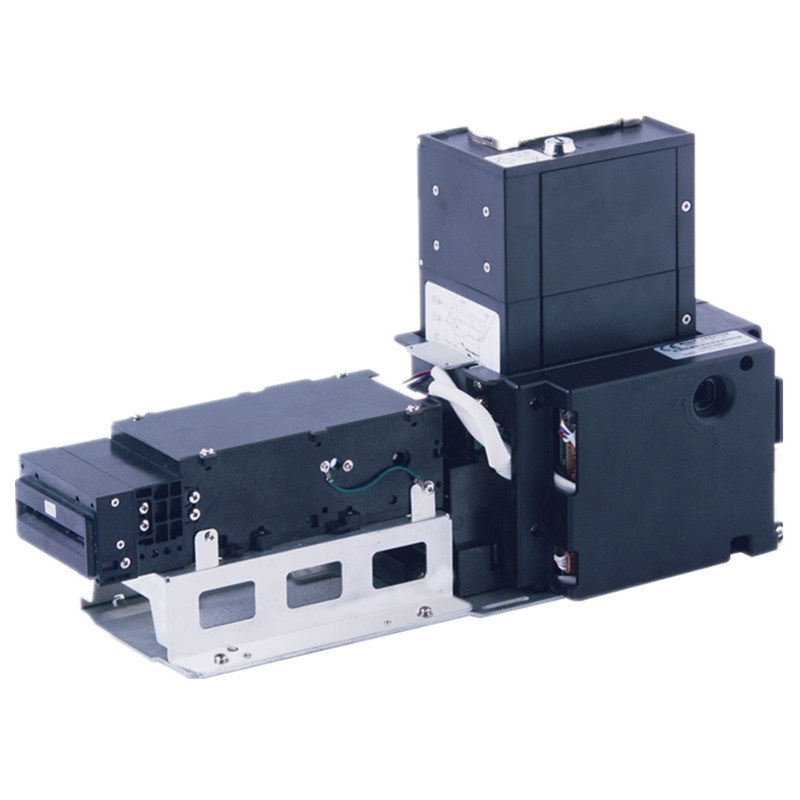

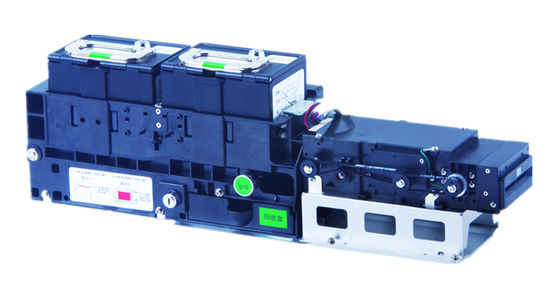

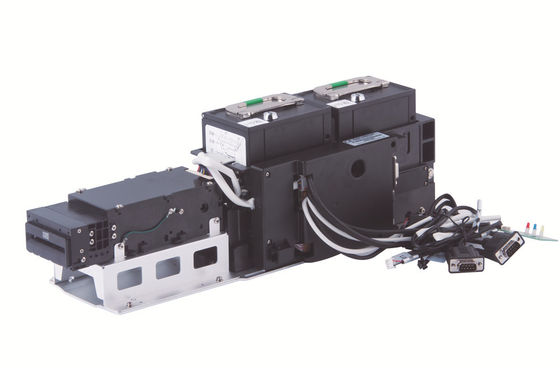

Two Stackers Magnetic Card Reader

Basic Information
Place of Origin: China
Brand Name: CREATOR
Certification: RoHs EMV PBOC
Model Number: CRT-591-D/H
Minimum Order Quantity: 1PC
Price: USD 350-400/PC
Packaging Details: 40*30*15CM
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10,000pcs per month
Detail Information
Function: IC/RFID/magnetic Card Read/write/dispense IC Card Type: ISO7816-, T=0,T=1 CPU Card
RFID Card Type: ISO14443 Type A & B,S50 S70,UL,Mifare Plus,Defire Magnetic Card Type: ISO7810,ISO7811
High Light:

sim card dispenser


automatic card dispenser

Product Description

One/two stacker card dispenser




Item Specification
Read /write function Mag-stripe card / IC /RFID card read and write
Speed <3.5 sec
Cassette capacity 50PCS*2,MAX 300pcs*2
Capture cassette
>=10pcs(flat card)
Interface RS232 And USB
User experience 1)flexible card supplement,easy for integrated cards supplement
2)the card output obviously, easy to take.
3)clear and quick trouble shooting
4)module design
Module security and
1)independent security lock for card cassette and capture cassette for antitheft and bank management
2)ATM high security standard design
3)Dust-resistant design for harsh environments
Module status
1)cassette detecting 2)card pre-empty / card empty detecting
3)capture cassette full detecting 4)transporting way status detecting
Application Payment kiosk,parking system,hotel checkin,TVM
Power supply 24VDC±10%
Condition tempreture 0℃~55℃
humidity 5%~90%RH(no condensing)
0%~95%RH((no condensing)




- Enable issue & retract IC / RFID /magnetic strip card

- Double removable card stackers & anti-reversing design

- Card stacker & error card bin with lock for security management

- Card empty,pre-empty & error card bin status detection & alarm function

- With dual card stacker,dual error card bin design,support card classify and recycle process




- Ticket machine

- Automatic vending machine

- Fuel dispenser

- SIM card dispenser




Two Stackers Magnetic Card Reader 0


1-----------Card reader(optional choice)

2---------- Card dispenser

3-----------The main board components

4-----------1# Stacker (Capacity has optional)

5-----------2# Stacker (Capacity has optional)

6-----------Metal base
