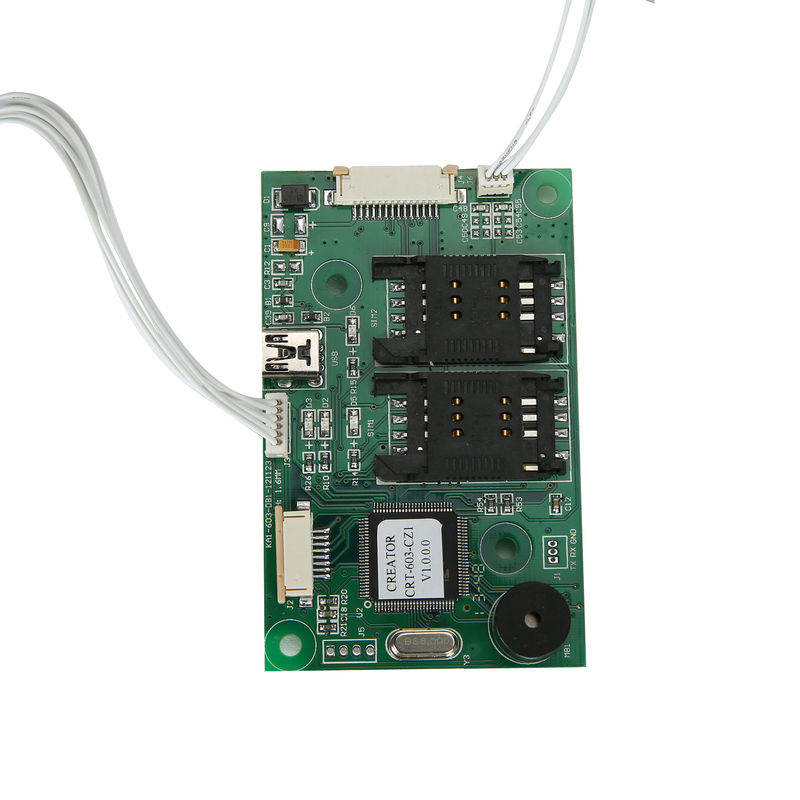

PCSC Compliant RFID Card Reader For Government , Smart Card Reader DC 5V

Place of Origin	Shenzhen, China
Brand Name	Creator
Certification	EMV CL, RoHS, CE, QPBOC, EMC, WHOQ
Model Number	CRT-603-CZ1

Product Details

Application:

Utility|Bank

Card Type:

RFID|RF

Certification:

EMV

Feature:

Smart|Contactless

Interface:

USB

Operating Frequency:

13.56 MHz|HF

Power Supply:

DC 5V

Highlight:

contactless smart card reader writer

chip card reader and writer

RFID Card Reader For Government

Product Description

PCSC Compliant RFID Card Reader For Government , Smart Card Reader DC 5V

Description:

USB2.0 full speed, PC/SC communication, CCID driver, easy operation
Support contactless card conforming to ISO14443-3/4 criterion typeA&typeB card
Cards anti-collision function : Error and certain information can be reported once more than one card appear simultaneously　
Conforming to banking payment application, to ensure an easier and safer payment
With SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing
Support Windows XP and Windows 7 operation system
EMV contactless Level 1 Certificated
PBOC 3.0 contactless certified
Separate 4 color LED indicator board
Firmware online update through USB ( supplier IAP tool provided )

Specifications:

Card type	RF Card:ISO14443Type A&B SAM card: ISO7816 T=0,T=1 SAM card ( 2 SAM slots )
Power supply	DC 5V ± 5%
Operating current	<120mA
Reading distance	70mm(depends on card)
Communication interface	USB
Operating frequency	13.56 MHz
Environmental conditions	Operation:0 ~ 50℃/0 ~ 90%RH (Non condensing) Storage:-10 ~ 75℃/0 ~ 90%RH (Non condensing)
Weight	About 100 g

Applications:

Bank, retail, government, transportation AFC, utility
