CRT-350-N WOSA Compact Structure Motorized Card Reader 250mA

CRT-350-N WOSA Compact Structure Motorized Card Reader 250mA
CRT-350-N WOSA Compact Structure Motorized Card Reader 250mA

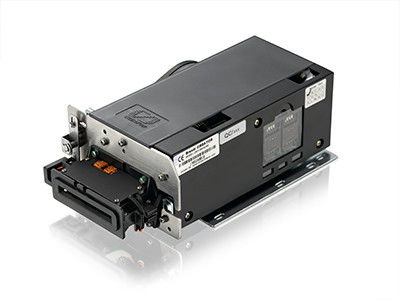

Large Image :  CRT-350-N WOSA Compact Structure Motorized Card Reader 250mA

Product Details:

Place of Origin: CHINA
Brand Name: CREATOR
Certification: EMV & PBOC
Model Number: CRT-350-N

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Payment Terms: 100% full TT advanced payment
Detailed Product Description
Width: 53.92~54.18mm Length: 85.47~85.90mm
Thickness: 0.76±0.08mm Power Supply: DC24V±10%
Name: Motorized Card Reader Approval: EMV & PBOC
High Light:

WOSA Motorized Card Reader

,

Compact Structure Motorized Card Reader

,

250mA IC RFID Card Reader

CRT-350-N is a general purpose smart card reader with integrated 3-in-1 card reader module for contact/contactless cards, magnetic stripe cards or hybrid cards.This reader is palm size small and compact with abundant features.



Motorized card reader,smart card reader CRT-350-N product feature
High-end ATM-oriented motor-driven card reader for magnetic card,contact IC card
Support open method by magnetic card detected,IC card pre-detected or switch
Front/rear card-in card-out,jittery card-in control
WOSA complied
Optional anti-skimming,anti-fishing function by electromagnetic wave interference
Encryption
Support DES,3DES,AES & Chinese commercial encryption algorithm
EMV & PBOC certified




Motorized card reader,smart card reader CRT-350-N product specification

Card type Magnetic card ISO7810,ISO7811
Loco 300oe,Support writing Loco 300oe
Writing Hico optional
IC card ISO7816-1,2,3
Support T=0,T=1 CPU card
Support T=0,T=1 PSAM card
Support R/W RFID card (optional)
Card dimension Width:53.92~54.18mm
Length:85.47~85.90mm
Thickness:0.76±0.08mm
Power supply DC24V±10%
Operation current ( without solenoid current ) Idle <250mA
Peak < 3000mA

Motorized card reader CRT-350-N product Application
ATM/CRS
Self-service terminal
Security terminal

Self-service recharging payment machine
