Magnetic RFID Contactless Card Dispenser , RS-232 Card Dispenser For IC Card

China Magnetic RFID Contactless Card Dispenser , RS-232 Card Dispenser For IC Card supplier

Large Image :  Magnetic RFID Contactless Card Dispenser , RS-232 Card Dispenser For IC Card

Product Details:

Place of Origin: Shenzhen, China
Brand Name: CRT
Certification: CE, EMV
Model Number: CRT-591M

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Delivery Time: 5-7days
Payment Terms: 100% full TT advanced payment
Contact Now
Detailed Product Description
Applications: Parking System|Access Control System Card Standard: ISO
Card Type: RF|IC Interface: RS-232
Type: Magnetic Card Dispenser Voltage: DC 24V

Quick Detail:



IC/RFID card read & write

Card feeding/capturing/accepting function

Cards pre-empty and empty detection

Read contact IC card in PCSC mode

Communication: RS232 / support multi-unit communication





Description:

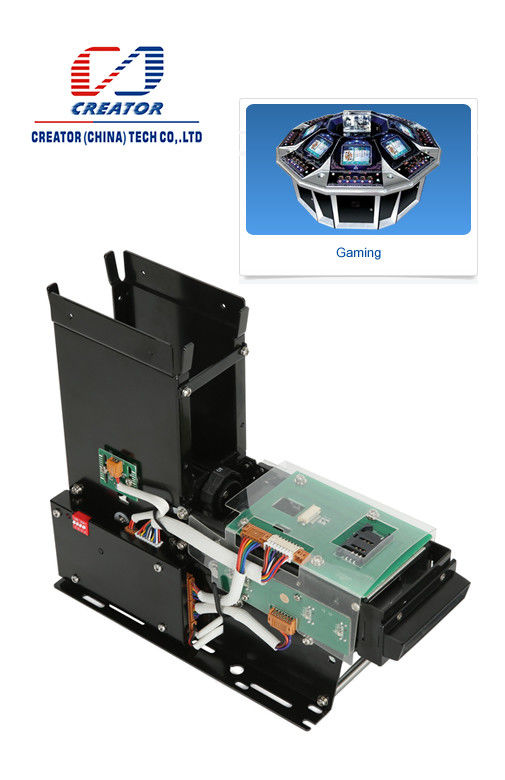

Card dispenser CRT-591M

CRT-591M is one of the most compact and integrated card dispenser in the world for contact and contactless IC cards dispensing, capturing, accepting, reading and writing.





Applications:



• Parking management system
• Automatic card vending machine
• Automatic card vending machine
• Hotel self-service access control system
• Card initialization batch
• Telecom/Electricity self-help account opening system





Specifications:



Technical Specification



ITEM

Specification

Power Supply

DC 24V±5%

Current Consumption

Static current: 40mA   Normal work current: 600mA    Peak current: 2.0A

Communication Interface

RS-232C,support multi-communication

Card read&write Type

Serial port support IC &RF card Read & Write

Card Dimensions

Width:53.92~54.18 mm,Lenth:85.47~85.90 mm, Thickness:0.76±0.08mm(be available for Braille card)

Weight

About 2.0 Kg(without accessories and package)

Set Dimension

Refer to structure and dimension drawings

Card loading

Max Stacker capability 150 pcs(0.76mm card)(Extend is available)

Error card bin: Max capability 25±4pcs(0.76mm card)

 Card pre-empty detect

7-50±2pcs (Ex-work standard: 25±2pcs)

Environment

Operation:  -10℃~60℃,  0~90 % RH  ( Without Condensing)

Storage:  -25℃~80℃,  0~95 % RH  ( Without Condensing)

MTBF

≥100,000 hr(only electric parts), note:250 times/day,25days/month,300hr/month

IC Card standard

Compliant ISO7816 standard

(AT24C01,24C02,……,24C256;SLE4442,SLE4428;CPU T=0/T=1)

RF Card standars

Compliant ISO14443-3(Mifare one:S50,S70,UL etc)

Compliant ISO14443-4(TYPE A CPU: Mifare plus,Mifare desfire etc)

Compliant ISO14443-4 TYPE B CPU

SIM Card standard

Compliant ISO7816 standard CPU Card T=0/T=1

On-line download

Support On Line ISP Download

RoHS standard

Compliant RoHS standard











































































Main Performance:



Faulty Ration in read & write

IC card:Card read&write 1,000 times, error is less than one time (except Q card)(note:IC card is standard card)

Faulty ratio in dispensing

Dispense standard card 1,000 times,,error is less than 1 time (note:standard card, except manipulating)

Dispense speed

About 14.8cm/s

Life cycle

IC contact and press device:500,000 cycles Min

Transmission:1,000,000 pass Min(card from stacker to card holding position or card error bin equal one pass)

























Magnetic RFID Contactless Card Dispenser , RS-232 Card Dispenser For IC Card
