3 In 1 Smart Card Dispenser With Pre-Card Dispensing , RF IC Magnetic Card Dispenser

China 3 In 1 Smart Card Dispenser With Pre-Card Dispensing , RF IC Magnetic Card Dispenser supplier

Large Image :  3 In 1 Smart Card Dispenser With Pre-Card Dispensing , RF IC Magnetic Card Dispenser

Product Details:

Place of Origin: Shenzhen, China
Brand Name: CRT
Certification: CE, EMV
Model Number: CRT-591N

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Delivery Time: 5-7days
Payment Terms: 100% full TT advanced payment
Contact Now
Detailed Product Description
Applications: Parking System, Access Control System Card Standard: ISO
Card Type: RF, IC Interface: RS-232C
Type: RFID Card Dispenser Voltage: DC 24V

3 In 1 Smart Card Dispenser With Pre-Card Dispensing , RF IC Magnetic Card Dispenser



Quick Detail:



IC/RF and Hi-co/Lo-co magnetic read/write

Pusher and hooker mechanism design, it’s high reliable for embossing card dispensed

Reliable lockable stacker

Reliable lockable error card retracted box

Automatically locking mechanism for illegal violation

Self-detect for stacker removal from machine

Security management of card box and retracted box

DC24V, A single serial port mode

On line IAP support





Description:

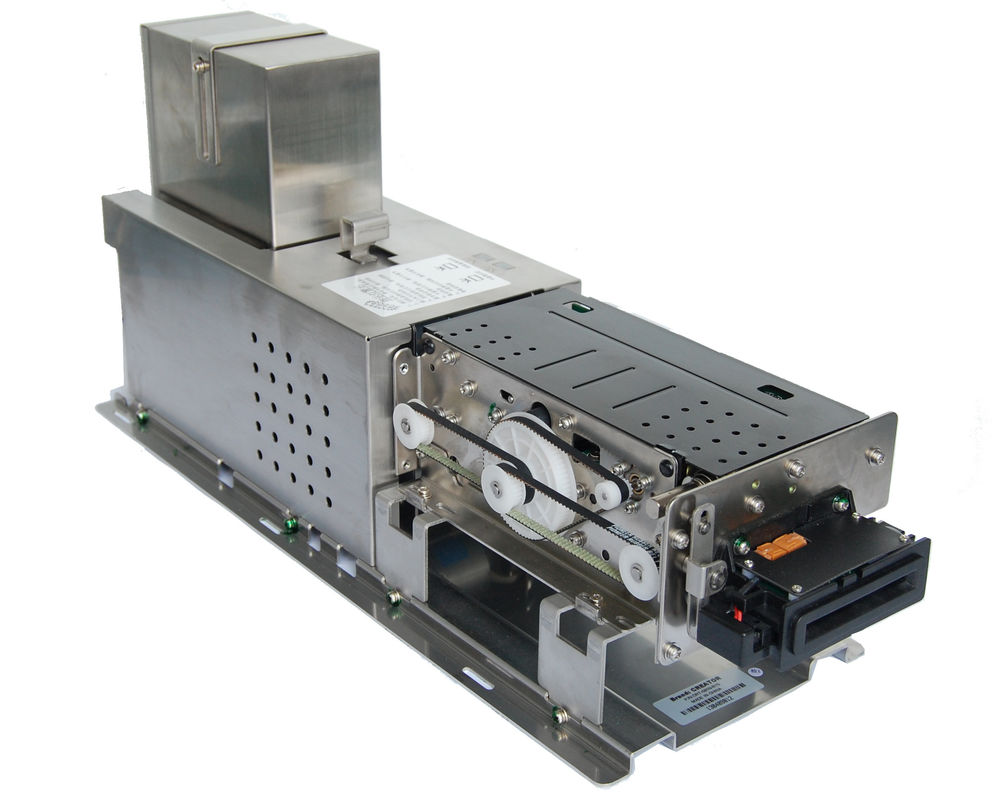

Dispenser CRT-591N with the function of hybrid cards reading & writing and a solid secure lockable & removable card box





Applications:



• Bank self-service opening account
• Medical self-service kiosk
• Parking management system
• Automatic card vending machine
• Ticket vending system
• Highway card issuing system





Specifications:



Technical specification



ITEM

Specification

Power Supply

DC 24V±5%

Current Consumption

Static current: 20mA  Normal work current: 800mA  Peak current: 3.0A

Card feed-out speed

> 0.5 Cards/s (Transportation Speed)

Interface

RS-232C

Card Dimensions

Length:85.47~85.90 mm,width:53.92~54.18 mm, Thickness: 0.76mm

Weight

About 15 Kg(without accessories and package)

Card stacker capability

Card box for maximum 150 pcs(standard 0.76mm card)

Card retracted box for max 15 pcs±2pcs(standard 0.76mm card)

Card pre-empty detect

35pcs±2pcs(standard 0.76mm)

Environment

Operation:  0℃~50℃,  0~90 % RH  ( Without Condensing)

Storage:  -25℃~80℃,  0~95 % RH  ( Without Condensing)

MTBF

≥100,000 hr(only electric parts), note:250 times/day,25days/month,300hr/month

Life time

magnetic head component:500,000 times Min

IC card down press device and contact pin:300,000 times Min

transfer: 500,000 pass Min(one time = card dispensing from box to front end or card retracted box)

Magnetic card

Physical character: ISO7810  and 7811

Dimension:ISO7810ID-1

Embossed card:ISO7811-1 and ISO7811-3

Record format: ISO7811-2,ISO7811-4,ISO7811-5 ISO7811-6

IC Card standard

Compliant ISO7816 standard(SLE4442,SLE4428;CPU T=0/T=1)

RF Card standars

Compliant ISO14443-3(Mifare one:S50,S70,UL etc)

Compliant ISO14443-4(TYPE A CPU: Mifare plus,Mifare desfire etc)

Compliant ISO14443-4 TYPE B CPU

Error rate

Magnetic stripe card:under normal condition(15~25℃,35~60%RH),read standard card 1,000 times, error rate less than (note:above magnetic stripe cards are standard excepting personal reason)

IC card:R&W 1,000 times,error rate less than 1 (excepting dirty cards)(note:above IC cards are standard card)

RF card:R&W 10,000 times,error rate less than 1(standard card)

On-line download

Support On Line ISP Download

RoHS standard

Compliant RoHS standard
