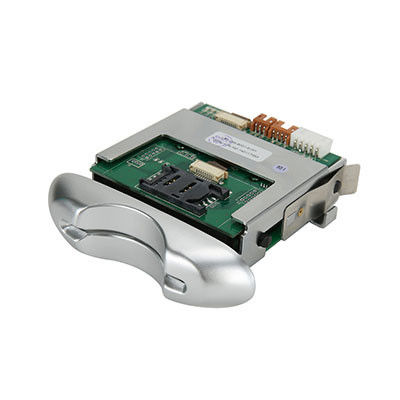

IC/RFID ATM Card Reader CRT-288-B 500000 Cycles Micro Switch For Gaming Machine

China IC/RFID ATM Card Reader CRT-288-B 500000 Cycles Micro Switch For Gaming Machine supplier

Large Image :  IC/RFID ATM Card Reader CRT-288-B 500000 Cycles Micro Switch For Gaming Machine

Product Details:

Place of Origin: CHINA
Brand Name: CREATOR
Certification: EMV & PBOC
Model Number: CRT-288-B

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 12pcs/each carton
Payment Terms: 100% full TT advanced payment
Contact Now
Detailed Product Description
Card Width: 53.92~54.18mm Card Length: 85.47~85.90mm
Card Thickness: 0.76~1.0mm Power Supply: DC5V±5% USB Powered
Communication Interface: RS-232/USB (HID) Weight: About 200g

The CRT-288-B manual insertion card reader allows for fast and reliable reading of magstripe and smart card data on cards that meet the ISO7816-1,2,3,4 specifications. Its ergonomically designed chassis allows for easy user interface, and ensures accurate and consistent card reading under all conditions.it is ideal solution for environments such as ATM, vending machine, or self-service kiosks.





kiosk card reader CRT-288-B product feature

Compact & light, high reliability & durability

Clog-proof, dust-proof, good environmental adaptability

Read ISO standard magnetic stripe cards, RFID cards and IC card

Electric card latch and release function

RS232/USB interface (automatically detect interface)

kiosk card reader CRT-288-B product specification

Card type

IC card ISO7816-1,2,3,4

Support T=0,T=1 CPU card

Support T=0,T=1 PSAM card

SLE4428,SLE4442,AT24C01,24C02,24C256

RFID card ISO14443 Type A & B

Support Mifare 1 S50,S70,UL card

Card dimension

Width:53.92~54.18mm

Length:85.47~85.90mm

Thickness:0.76~1.0mm

Power supply DC5V±5% USB powered
Communication interface RS-232/USB (HID)
Operation current

Idle<50mA

Peak<200mA

Micro switch 500,000 cycles

ATM card reader

kiosk card reader CRT-288-B product application

Multimedia kiosk

Access control system

Vending machine

Gaming machine

Refueling terminal
